Sewer Rehab & Repair: Packers

Pipe Plugs Packers

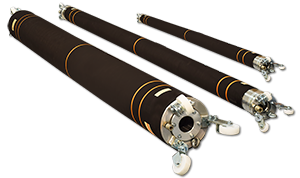

Our new multi-size flexible pipe packer is used for point-repairs.

Suitable for sectional repair (re-line) of all types of drainage pipes and sanitary sewers.

Multi-size packers fit several pipe sizes.

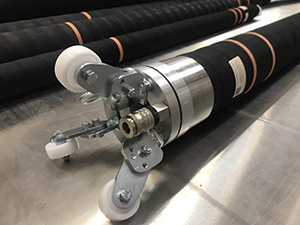

Replaceable and adjustable wheels can be quickly and easily configured for different pipe sizes.
Highly flexible internal bypass simplifies the insertion where access is limited, while still having suitable rigidity for pushing through the pipeline.
The bypass lock with its protected thread allows you to configure the packer for bypass or non-flow use.
Product weight has been reduced through the use of new lighter materials, simplifying handling and transport of larger packers.
Compatible with the Source1 Environmental Pipe Patch System

Catalog

Dealers:

FLEXIBLE PACKER SYSTEM
	Diam	Length
Part Number	Size		Inflation Pressure PSI
Part Number	inch	ft.	Description
TYPE 10.0-15.0
FP0001	4”-6”	3.2'	36 PSI Flex-Packer
FP0002	4”-6”	5'	36 PSI Flex-Packer
FP0003	4”-6”	6.5'	36 PSI Flex-Packer
FP0004	4”-6”	8'	36 PSI Flex-Packer
FP0005	4”-6”	10'	36 PSI Flex-Packer
FP0006	4”-6”	13'	36 PSI Flex-Packer
FP0007	4”-6”	16'	36 PSI Flex-Packer
TYPE 15.0-25.0
FP0008	6”-10”	3.2'	28 PSI Flex-Packer
FP0009	6”-10”	5'	28 PSI Flex-Packer
FP0010	6”-10”	6.5'	28 PSI Flex-Packer
FP0011	6”-10”	8'	28 PSI Flex-Packer
FP0012	6”-10”	10'	28 PSI Flex-Packer
FP0013	6”-10”	13'	28 PSI Flex-Packer
FP0014	6”-10”	16'	28 PSI Flex-Packer
TYPE 20.0-30.0
FP0015	8”-12”	3.2'	22 PSI Flex-Packer
FP0016	8”-12”	5'	22 PSI Flex-Packer
FP0017	8”-12”	6.5'	22 PSI Flex-Packer
FP0018	8”-12”	8'	22 PSI Flex-Packer
FP0019	8”-12”	10'	22 PSI Flex-Packer
FP0020	8”-12”	13'	22 PSI Flex-Packer
FP0021	8”-12”	16'	22 PSI Flex-Packer
TYPE 30.0-40.0
FP0022	12”-16”	3.2'	22 PSI Flex-Packer
FP0023	12”-16”	5'	22 PSI Flex-Packer
FP0024	12”-16”	6.5'	22 PSI Flex-Packer
FP0025	12”-16”	8'	22 PSI Flex-Packer
FP0026	12”-16”	10'	22 PSI Flex-Packer
FP0027	12”-16”	13'	22 PSI Flex-Packer
FP0028	12”-16”	16'	22 PSI Flex-Packer
TYPE 40.0-50.0
FP0029	16”-20”	3.2'	17 PSI Flex-Packer
FP0030	16”-20”	5'	17 PSI Flex-Packer
FP0031	16”-20”	6.5'	17 PSI Flex-Packer
FP0032	16”-20”	8'	17 PSI Flex-Packer
FP0033	16”-20”	10'	17 PSI Flex-Packer
FP0034	16”-20”	13'	17 PSI Flex-Packer
FP0035	16”-20”	16'	17 PSI Flex-Packer
TYPE 45.0-60.0
FP0036	18”-24”	3.2'	17 PSI Flex-Packer
FP0037	18”-24”	5'	17 PSI Flex-Packer
FP0038	18”-24”	6.5'	17 PSI Flex-Packer
FP0039	18”-24”	8'	17 PSI Flex-Packer
FP0040	18”-24”	10'	17 PSI Flex-Packer
FP0041	18”-24”	13'	17 PSI Flex-Packer
FP0042	18”-24”	16'	17 PSI Flex-Packer
TYPE 50.0-60.0
FP0043	20”-24”	3.2'	14 PSI Flex-Packer
FP0044	20”-24”	5'	14 PSI Flex-Packer
FP0045	20”-24”	6.5'	14 PSI Flex-Packer
FP0046	20”-24”	8'	14 PSI Flex-Packer
FP0047	20”-24”	10'	14 PSI Flex-Packer
FP0048	20”-24”	13'	14 PSI Flex-Packer
FP0049	20”-24”	16'	14 PSI Flex-Packer
TYPE 60.0-80.0
FP0050	24”-32”	3.2'	14 PSI Flex-Packer
FP0051	24”-32”	5'	14 PSI Flex-Packer
FP0052	24”-32”	6.5'	14 PSI Flex-Packer
FP0053	24”-32”	8'	14 PSI Flex-Packer
FP0054	24”-32”	10'	14 PSI Flex-Packer
FP0055	24”-32”	13'	14 PSI Flex-Packer
FP0056	24”-32”	16'	14 PSI Flex-Packer
TYPE 80.0-100.0
FP0057	32”-40”	5'	14 PSI Flex-Packer
FP0058	32”-40”	6.5'	14 PSI Flex-Packer
TYPE 100.0-120.0
FP0059	40”-48”	6.5'	14 PSI Flex-Packer
